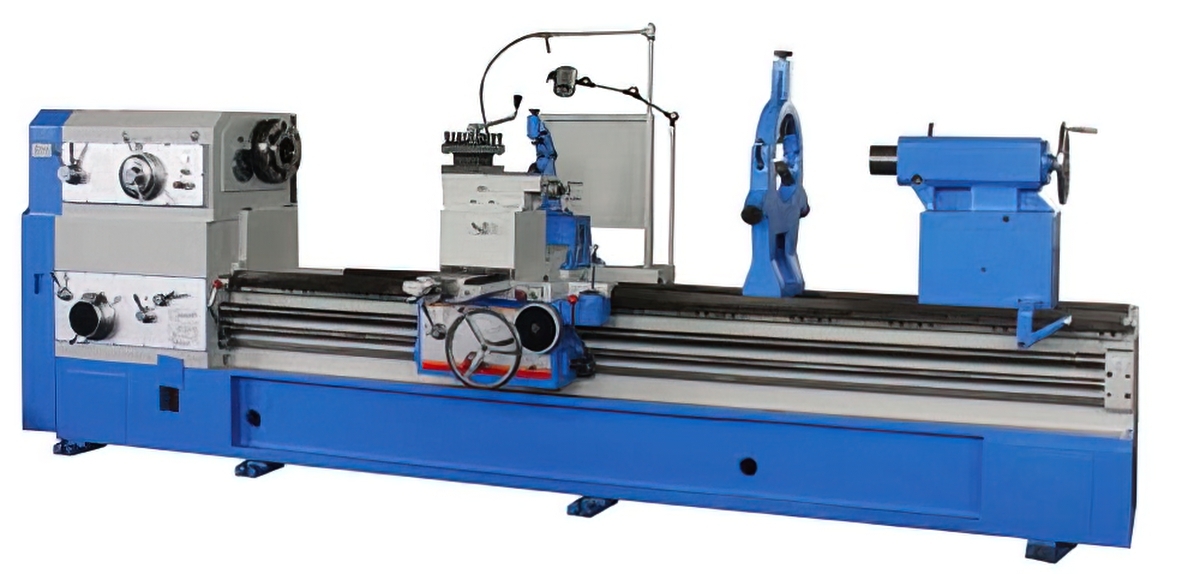

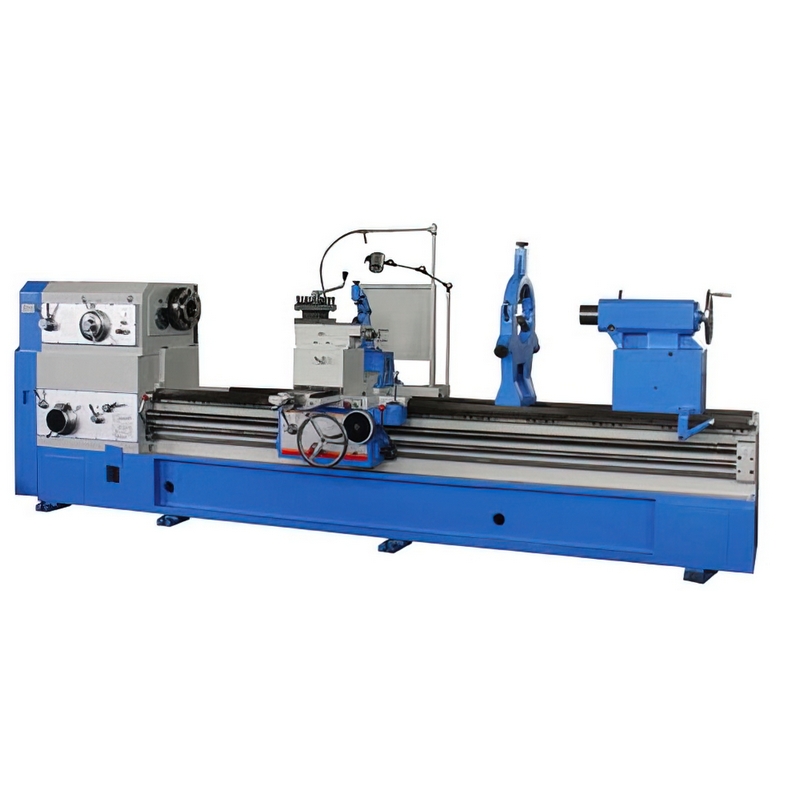

TN630F ~ TN1450F Heavy Duty Lathe Machine

Category: Heavy Duty Lathe

Model No.	TN630F	TN800F	TN950F	TN1100F	TN1250F	TN1450F
Item No.
Specifications
Distance between centers	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000 mm
Swing over bed	630 mm	800 mm	950 mm	1100 mm	1250 mm	1450 mm
Swing over gap	800 mm	970 mm	1120 mm	1270 mm	1420 mm	1620 mm
Swing over cross slide	350 mm	520 mm	640 mm	790 mm	940 mm	1140 mm
Width of bed	550 mm
Spindle bore	100 mm
Taper of spindle bore	Metric Φ120 1:20
Step of spindle speeds	18
Range of spindle speeds	6-800 rpm 18kinds			4-530 rpm 18kinds
Range of cross feeds	0.05-12.5 mm/r
Range of longitudinal feeds	0.1-24.3 mm/r 64 kinds
Range of inch threads	14-1 T.P.I. 26 kinds
Range of metric threads	1-240 mm 50 kinds
Range of moduler threads	0.5-120 mm 53 kinds
Range of diametrical threads	28-1 D.P. 24 kinds
Rapid feed Longitudinal/Cross	4000 mm/min. 1933 mm/min.
Tool section	32x25 mm
Top slide travel	200 mm
Cross slide travel	420 mm
Tailstock quill travel	250 mm
Tailstock quill diameter	100 mm
Tailstock quill taper	MT5
Main motor	11 kw
Rapid feed motor	550W
Coolant pump motor	125W
Packing size (for 6M)mm	8420x1730 x1970	8420x1730 x1970	8420x1760 x1970	8420x1790 x2050	8420x1820 x2100	8420x1970 x2300
Gross weight (for 6M)	10200 kg	10200 kg	11600 kg	12000 kg	12500 kg	13300 kg
