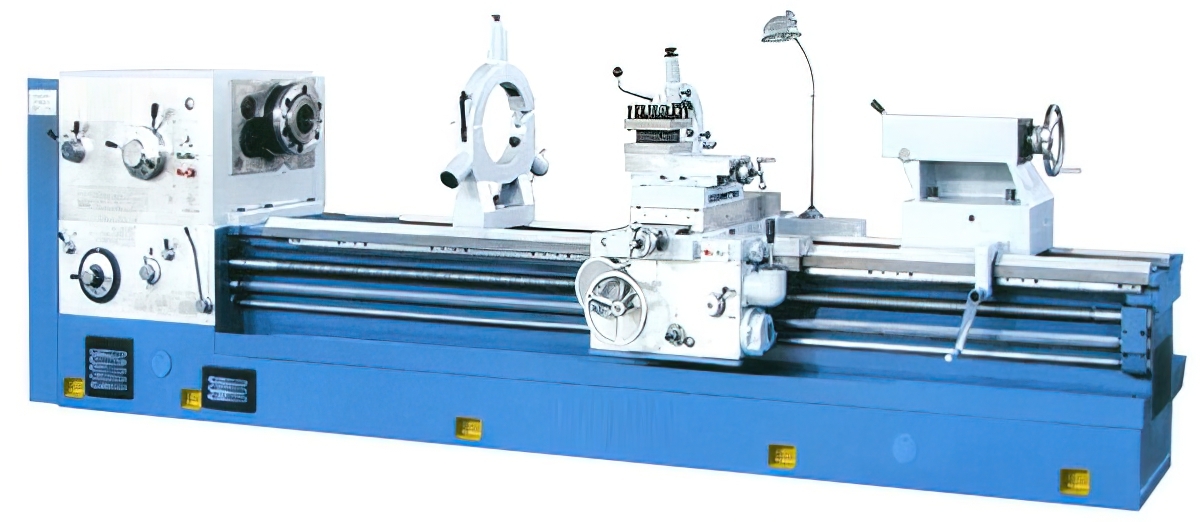

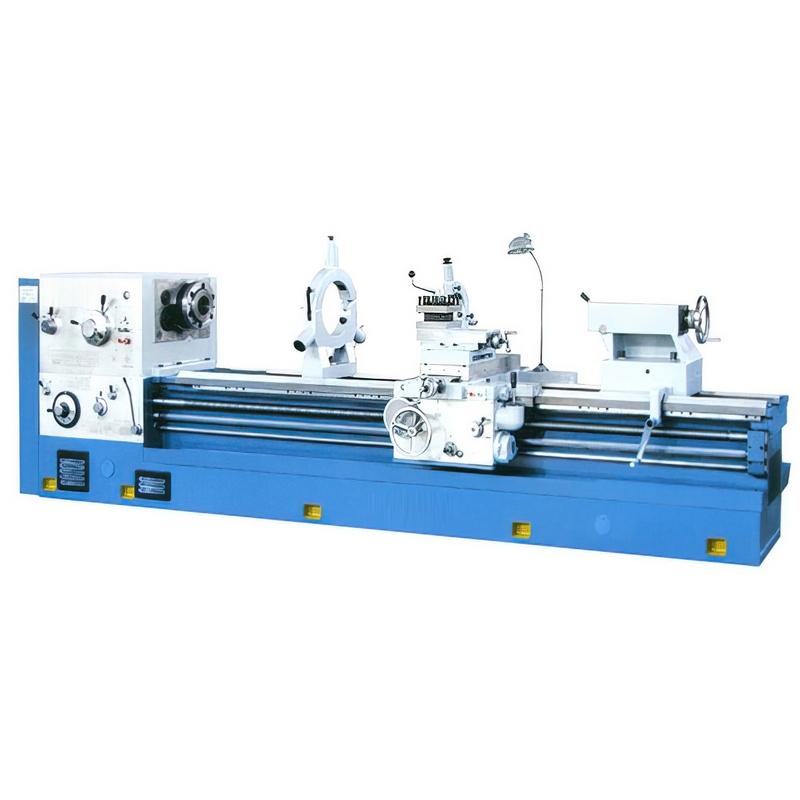

Model No. |
TL630 |
TL800 |
TL1000 |
TL1200 |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max.swing over bed |
630 mm |
800 mm |
1000 mm |
1200 mm |
|
Max. swing over gap |
800 mm |
1000 mm |
1200 mm |
1400 mm |
|
Max. swing over cross slide |
345 mm |
480 mm |
680 mm |
680 mm |
|
Center distance |
1m,1.5m,2m,3m,4m,5m,6m,8m,10m,12m, |
|||
|
Width of bed |
600 mm |
|||
|
Spindle hole |
105 mm (130 mm) |
|||
|
Spindle taper |
Φ120 mm taper 1:16 |
|||
|
Spindle speeds |
7.5-1000 r/min |
7-720 r/min (18 steps) |
||
|
Metric threads mm |
1-240mm (52 kinds) |
|||
|
Inch threads TPI |
1-14 (26Kinds) |
|||
|
Moudle threads mm |
0.5-120mm (53 kinds) |
|||
|
Diametrical threads D.P. |
1-28 (24 kinds) |
|||
|
Longitudinal feeds range |
0.1-24.3 mm/r |
|||
|
Cross feed range |
0.05-12.15 mm/r |
|||
|
Rapid feed Longitudinal/Cross |
4000 mm/min, 2000 mm/min |
|||
|
Tool section |
32x32 mm |
|||
|
Cross slide travel |
370 mm |
430 mm |
||
|
Compound rest travel |
200 mm(Automatic feed:170 mm) |
|||
|
Tailstock quill travel |
240 mm |
|||
|
Tailstock quill diameter |
100 mm |
|||
|
Tailstock quill taper |
Morse 6# |
|||
|
Steady rest |
Φ20-200 mm |
|||
|
Follow rest |
Φ20-100 mm |
|||
|
Main motor |
11 kw |
|||
|
Rapid feed motor |
1.1 kw |
|||
|
|
|
|||
|
Net weight (for WL630) |
Dimension (for TL630) |
Net weight (for TL630) |
Dimension (for TL630) |
||
|
1000 mm |
4400 kg |
3000x1170x1250 mm |
5000 mm |
6800 kg |
7000x1170x1250 mm |
|
1500 mm |
4700 kg |
3500x1170x1250 mm |
6000 mm |
7400 kg |
8000x1170x1250 mm |
|
2000 mm |
5000 kg |
4000x1170x1250 mm |
8000 mm |
8800 kg |
10000x1170x1250 mm |
|
3000 mm |
5600 kg |
5000x1170x1250 mm |
10000 mm |
10200 kg |
12000x1170x1250 mm |
|
4000 mm |
6200 kg |
6000x1170x1250 mm |
12000 mm |
11500 kg |
14000x1170x1250 mm |
