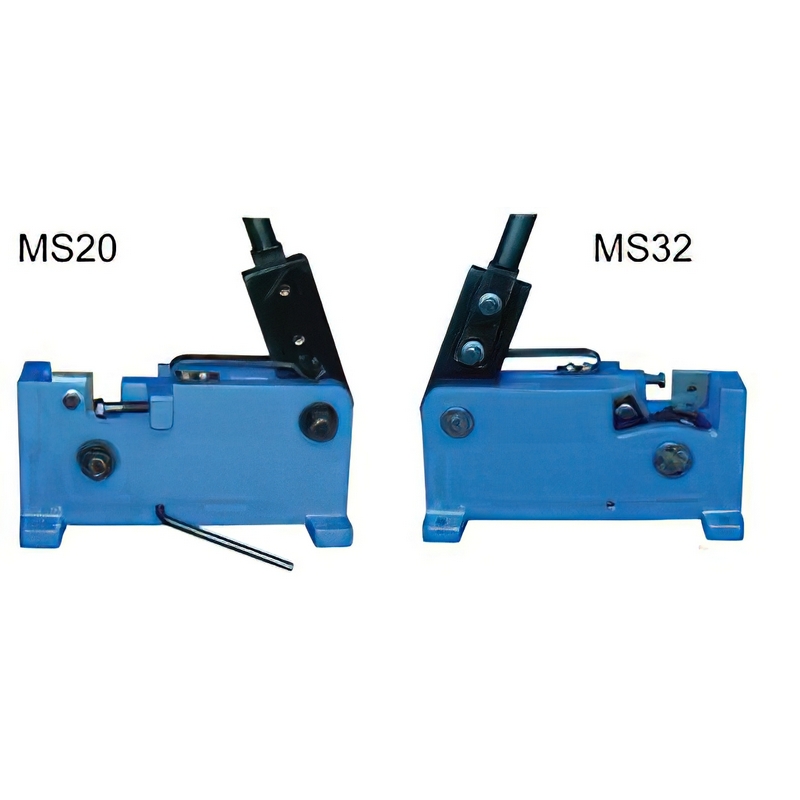

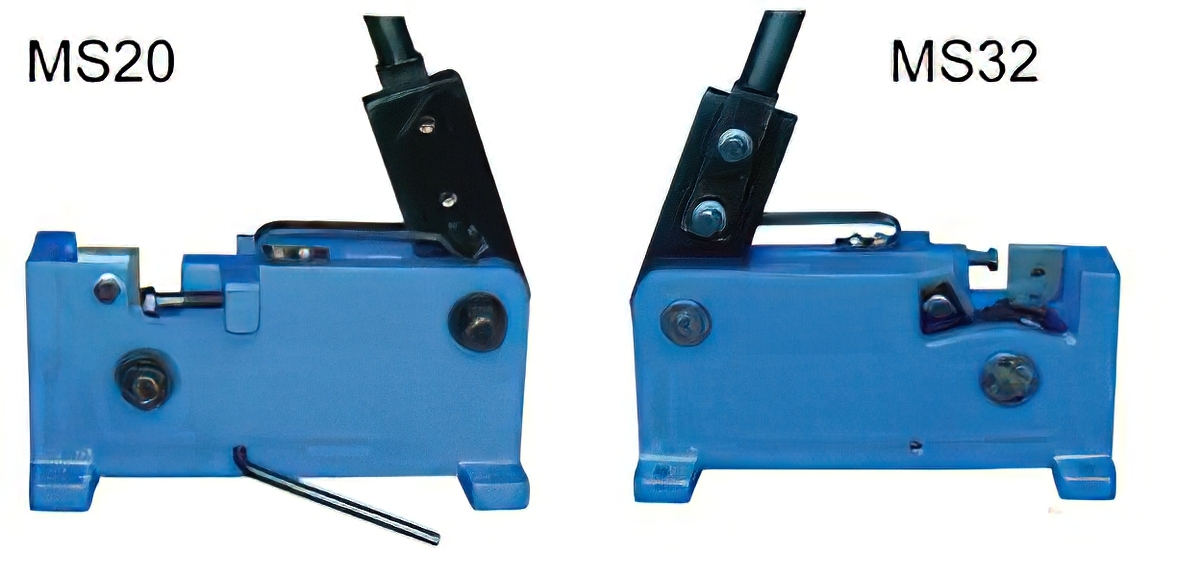

MANUAL SHEAR
FEATURES:●Best for cutting metal plate, rod, steel, flat Steel
●Durable steel frame cutter includes hardened high carbon steel blade
●Bolt to bench or table top
●Blade is easily replaceaced
|
Model No. |
MS-20 |
MS-24 |
MS-28 |
MS-32 |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Square steel (mm) |
18 x 18 |
20 x 20 |
24 x 24 |
28 x 28 |
|
Flat Steel (mm) |
30 x 8 |
35 x 12 |
40 x 12 |
40 x 14 |
|
Round Steel (mm) |
20 |
24 |
28 |
32 |
|
Packing Size(cm) |
40 x 23 x 36 |
42 x 24 x 39 |
46 x 28 x 43 |
51 x 28 x 43 |
|
N.W./G.W. (kg) |
14 / 19 |
22 / 27 |
34 / 39 |
48 / 52 |
