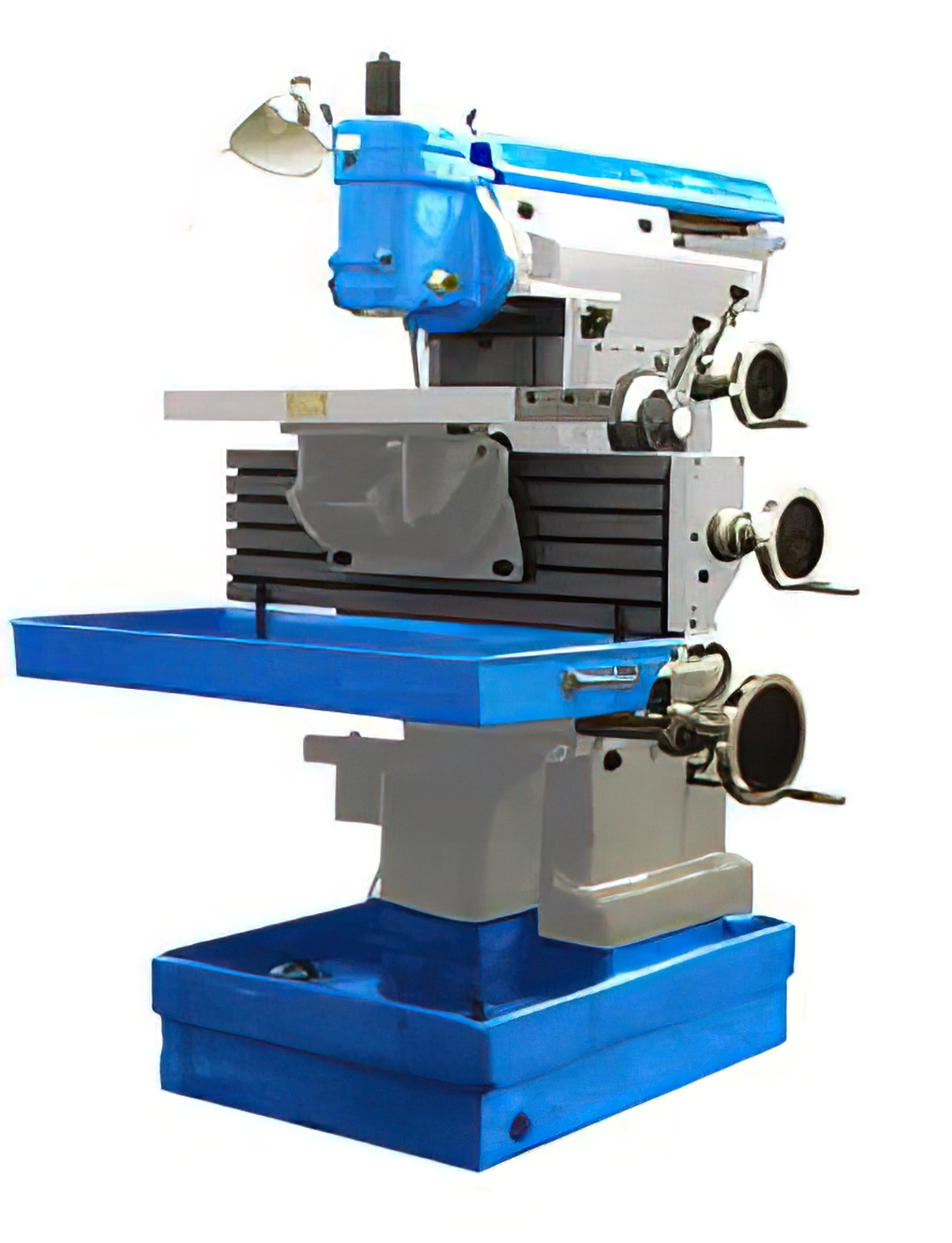

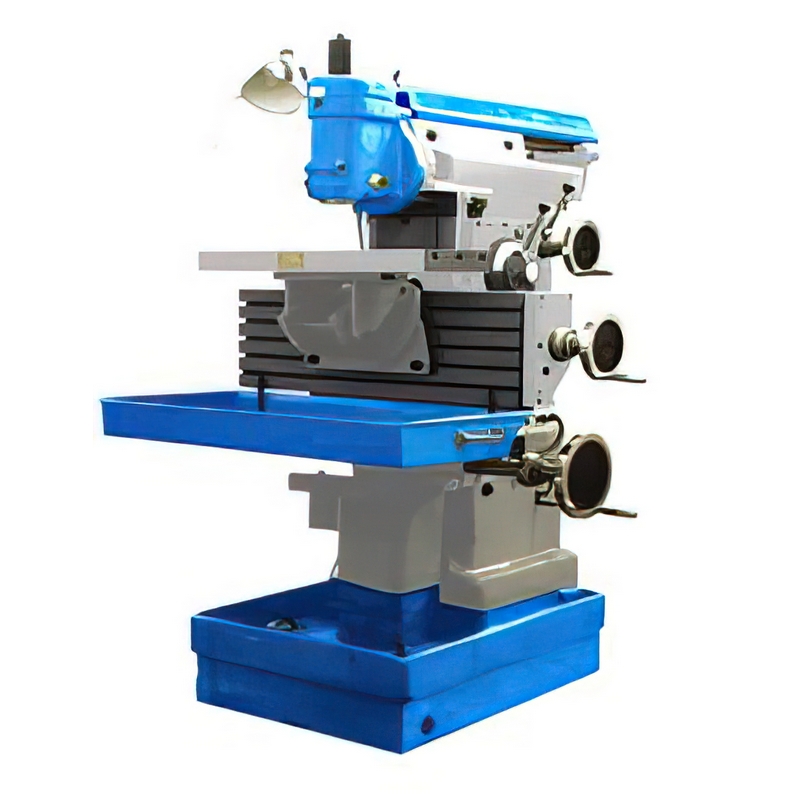

Model No. |
M8126 | |
|
Item No. |
||
|
Specifications |
||
|
Table size |
280 x 700 mm |
|
|
Distance between axis |
First installing position |
35~385 mm |
|
Second installing position |
42~392 mm |
|
|
Third installing position |
132~482 mm |
|
|
Distance between vertical spindle nose to horizontal spindle axis |
95 mm |
|
|
Distance between horizontal spindle nose to vertical spindle axis |
131 mm |
|
|
Transverse travel of horizontal spindle |
200 mm |
|
|
Vertical travel of vertical spindle quill |
80 mm |
|
|
Range of horizontal spindle speeds (8 steps) |
110-1230 rpm |
|
|
Range of vertical spindle speeds (8 steps) |
150-1660 rpm |
|
|
Spindle hole taper |
IS040 / Morse No. 4 |
|
|
Swivel angle of vertical spindle axis |
±45° |
|
|
Longitudinal travel of table |
350 mm |
|
|
Vertical travel of table |
350 mm |
|
|
Feeds of table in longitudinal and vertical directions and |
25-285 mm/min. |
|
|
Rapid feed of table in longitudinal and vertial directions |
1000 mm/min. |
|
|
Main motor |
3 kW |
|
|
Coolant pump motor |
0.04 kW |
|
|
Overall dimensions |
1450 x 1450 x 1650 mm |
|
|
Net weight |
1180/1410 kg |
|
|
Optional Accessories |
|
Universal table |
|
Parallel vice |
|
Slotting head |
|
Rotary table |
|
Dividing head |
