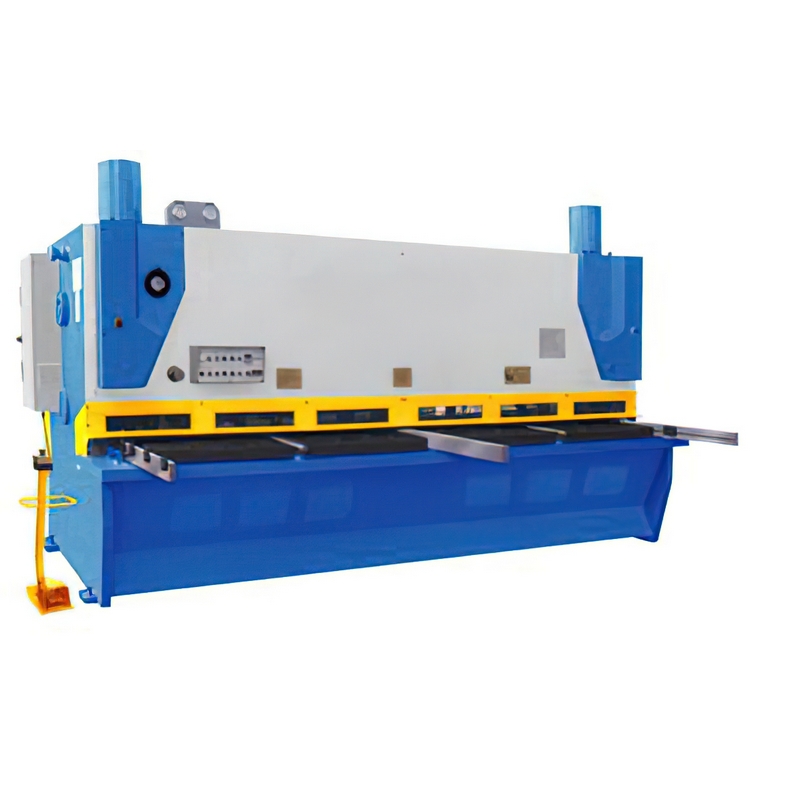

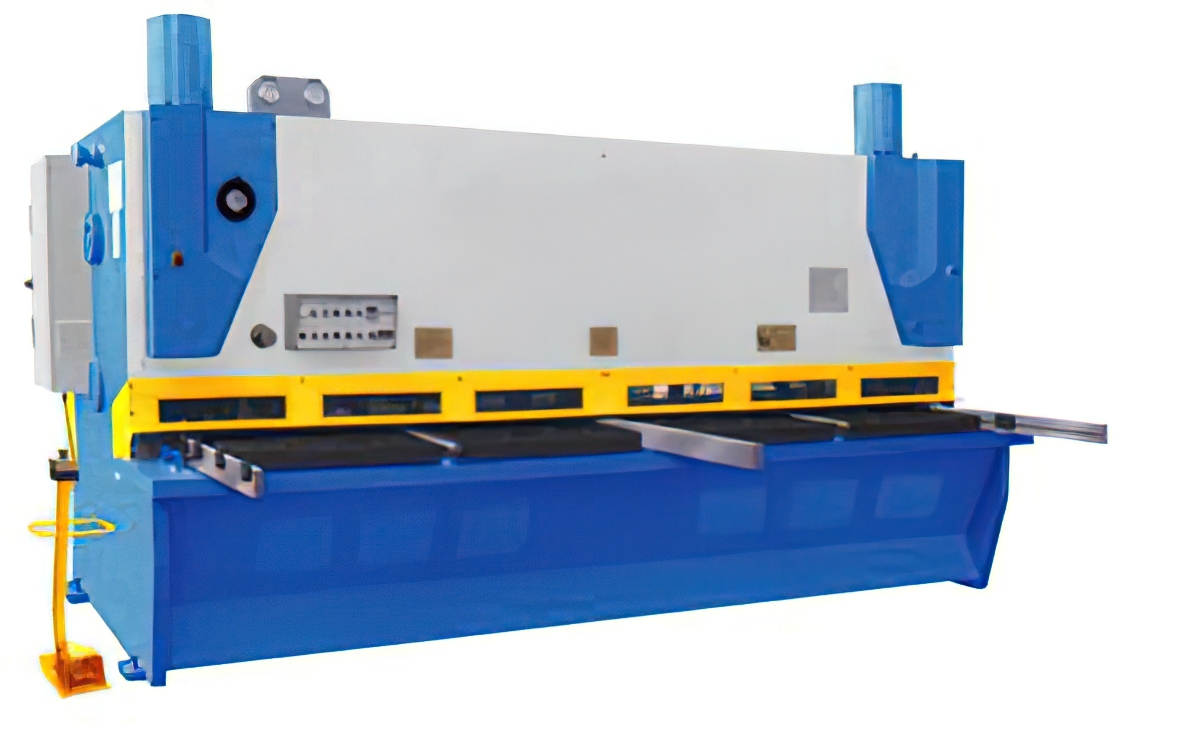

QC11Y HYDRAULIC GUILLTOTINE SHEARING MACHINE
FEATURES:
●The second generation of hydraulic shear
●Welded steel plate construction, stress relieved.
●Advanced integrated hydraulic system with excellent reliability
●3-point support on the rolling guide with for improved shearing quality
●Rapid, accurate, and convenient adjustment of blade clearance with hand wheel
●Rectangular blades with 4 cutting edges for long cutting life.
●Adjustable rake angle to minimize plate deformation
●Cutting beam with inner-inclined structure provides easy fall down for plates and high accuracy
●Shearing in section: Shadow-line cutting
●Counter for the motorized back gauge
|
Model No. |
QC11Y |
QC11Y |
QC11Y |
QC11Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
4 mm |
6 mm |
6 mm |
6 mm |
|
Max.Shearing Width (mm) |
2500 mm |
2500 mm |
3200 mm |
4000 mm |
|
Shearing Angle (°) |
0.5°~2° |
0.5°~2.5° |
0.5°~2.5° |
0.5°~2.5° |
|
Number of Stroke (min)-1 |
10~35 |
10-35 |
8-35 |
7-35 |
|
Backgauge Rang (mm) |
20~500 mm |
20~600 mm |
20~600 mm |
20~600 mm |
|
The depth of throat (mm) |
100 mm |
125 mm |
125 mm |
125 mm |
|
Motor Power |
5 kw |
7.5 kw |
7.5 kw |
7.5 kw |
|
Net Weight (kg) |
3800 kg |
5300 kg |
6500 kg |
7500 kg |
|
PackingSize (cm) |
300x200x185 |
303x208x192 |
373x208x197 |
453x208x208 |
|
Model No. |
QC11Y |
QC11Y |
QC11Y |
QC11Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
6 mm |
6 mm |
8 mm |
8 mm |
|
Max.Shearing Width (mm) |
5000 mm |
6000 mm |
2500 mm |
3200 mm |
|
Shearing Angle (°) |
0.5°~2.5° |
0.5°~2.5° |
0.5°~2.5° |
0.5°~2.5° |
|
Number of Stroke (min)-1 |
6-25 |
5-25 |
10-35 |
8-35 |
|
Backgauge Rang (mm) |
20~600 mm |
20~600 mm |
20~600 mm |
20~800 mm |
|
The depth of throat (mm) |
125 mm |
125 mm |
125 mm |
125 mm |
|
Motor Power |
11 kw |
11 kw |
11 kw |
11 kw |
|
Net Weight (kg) |
- |
15200 kg |
6000 kg |
6800 kg |
|
PackingSize (cm) |
553x208x321 |
653x208x252 |
304x208x192 |
374x208x192 |
|
Model No. |
QC11Y |
QC11Y |
QC11Y |
QC11Y |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
12 mm |
12 mm |
12 mm |
16 mm |
|
Max.Shearing Width (mm) |
2500 mm |
3200 mm |
4000 mm |
2500 mm |
|
Shearing Angle (°) |
0.5°~2.5° |
0.5°~2° |
0.5°~2.5° |
0.5°~3° |
|
Number of Stroke (min)-1 |
10-35 |
6-20 |
8-35 |
8-30 |
|
Backgauge Rang (mm) |
20~800 mm |
1000 mm |
20~800 mm |
20~1000 mm |
|
The depth of throat (mm) |
300 mm |
300 mm |
300 mm |
300 mm |
|
Motor Power |
18.5 kw |
15 kw |
18.5 kw |
22 kw |
|
Net Weight (kg) |
8700 kg |
9800 kg |
13400 kg |
9000 kg |
|
PackingSize (cm) |
311x258x221 |
381x258x242 |
461x258x253 |
313x266x220 |
|
Model No. |
QC11Y |
QC11Y |
QC11Y |
-- |
|
Item No. |
|
|
|
|
|
Specifications |
||||
|
Max. Shearing Thickness (mm) |
16 mm |
20 mm |
20 mm |
|
|
Max.Shearing Width (mm) |
4000 mm |
2500 mm |
4000 mm |
|
|
Shearing Angle (°) |
0.5°~3° |
0.5°~3° |
0.5°~3° |
|
|
Number of Stroke (min)-1 |
6-30 |
9-30 |
6-30 |
|
|
Backgauge Rang (mm) |
20~1000 mm |
20~1000 mm |
20~1000 mm |
|
|
The depth of throat (mm) |
300 mm |
300 mm |
300 mm |
|
|
Motor Power |
30 kw |
30 kw |
30 kw |
|
|
Net Weight (kg) |
15000 kg |
11000 kg |
21000 kg |
|
|
PackingSize (cm) |
463x266x257 |
316x286x230 |
466x286x272 |
|
