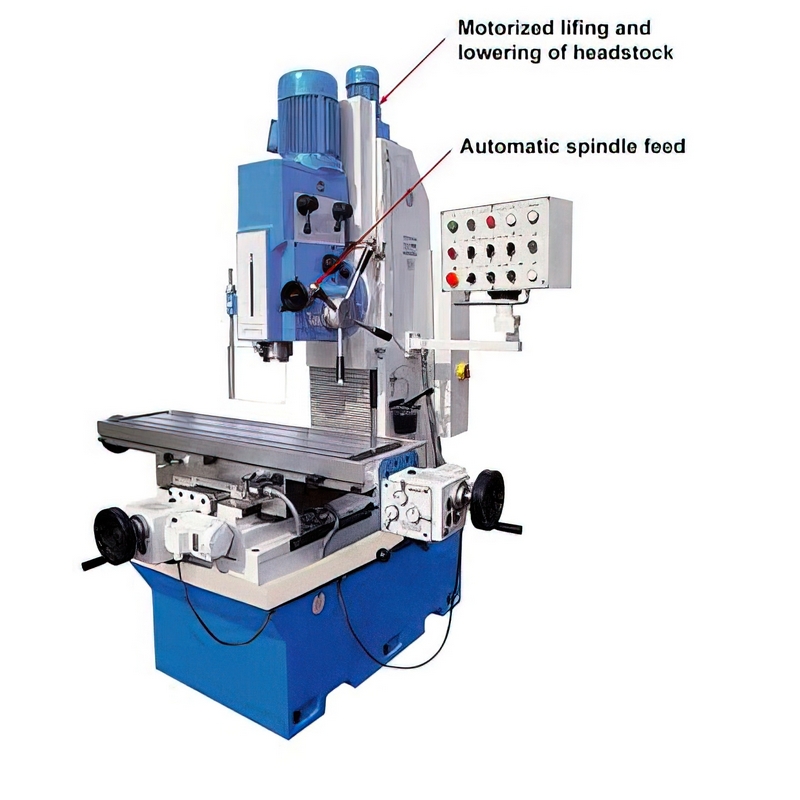

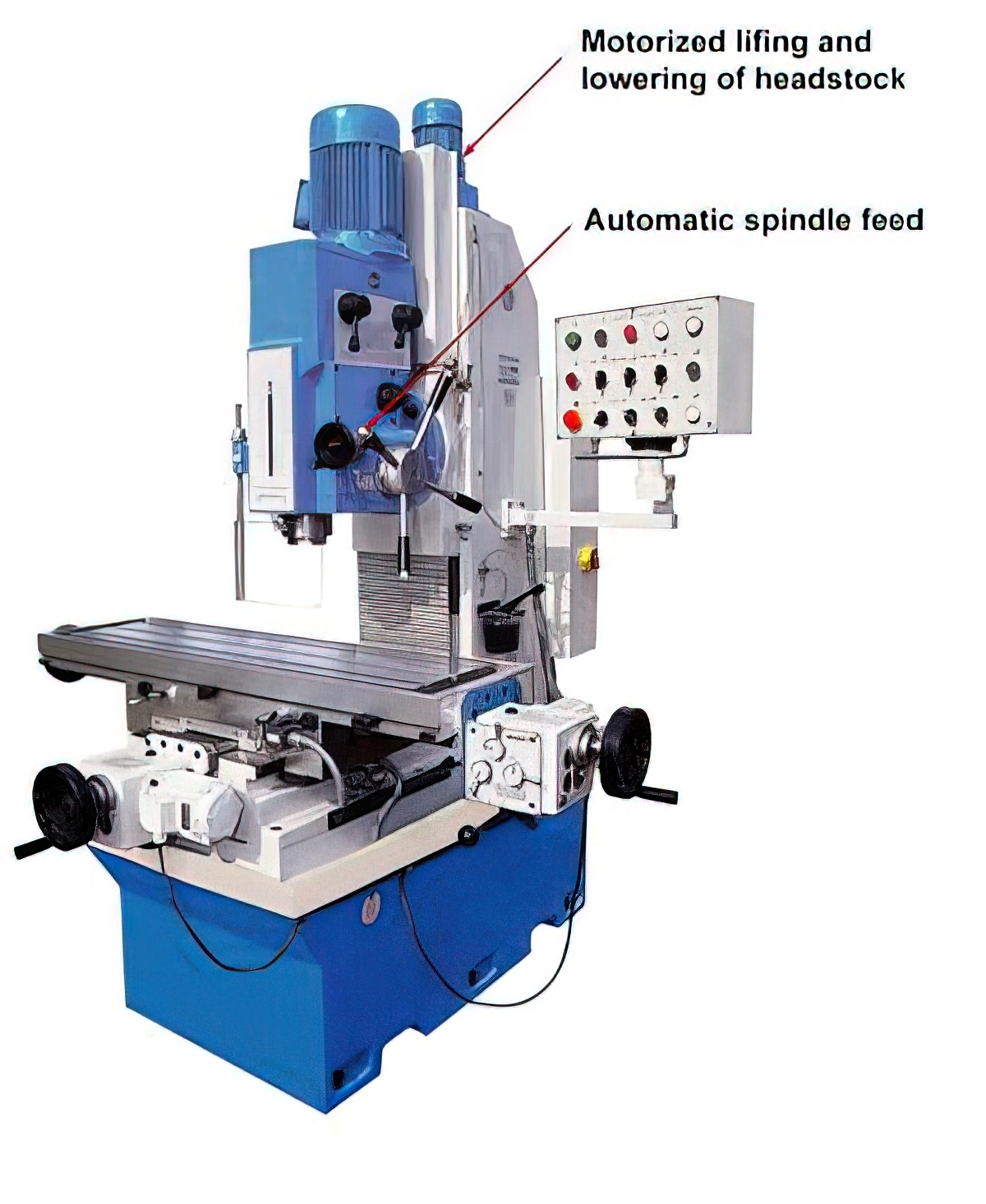

Model No.

M5150

    Item No.

　Specifications

　Table size

1220 x 360 mm

　Table travel (X,Y)

600 x 360 mm

　Table power feed speed range (X)

24 ~ 720 mm/min

　Table power feed speed range (Y)

24 ~ 720 mm/min

　Headstock feed speed range (Z)

－

　T-slot

3 x 14 - 95 mm

　Distance from spindle nose to table

50 ~ 580 mm

　Distance from spindle axis to column

400 mm

　Spindle taper

ISO40

　Spindle stroke

180 mm

　Step of spindle speeds

16

　Range of spindle speeds

94 ~ 2256 rpm

　Head swivel

±45°

　Automatic spindle feed

0.1 0.15 0.3 mm/rev

　Spindle motor

1.5/2.4 kw

　Overall dimension

1730 x 1730 x 2300 mm

　Net weight

2000 kg
