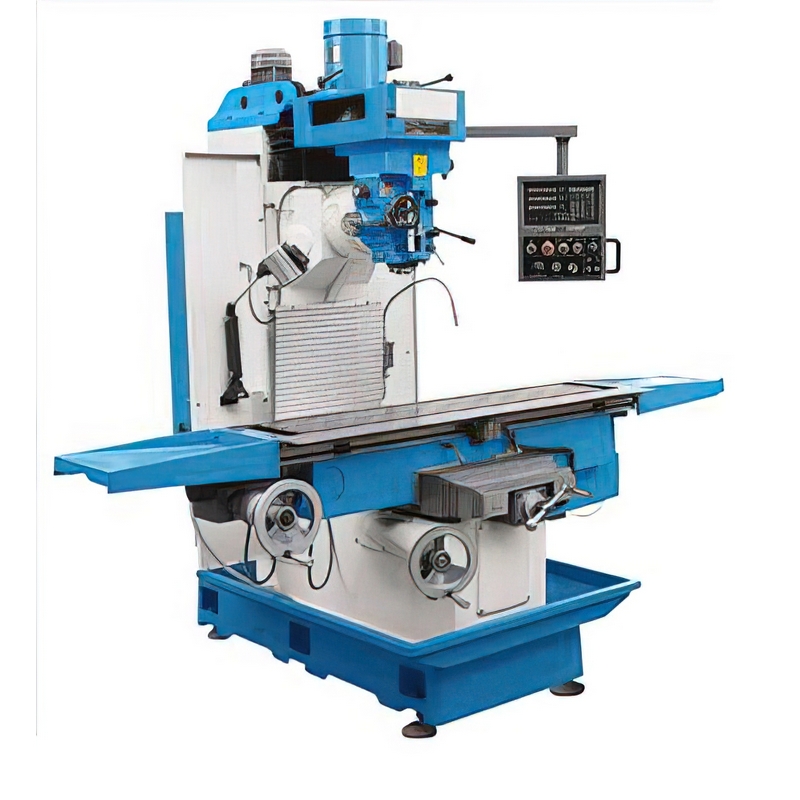

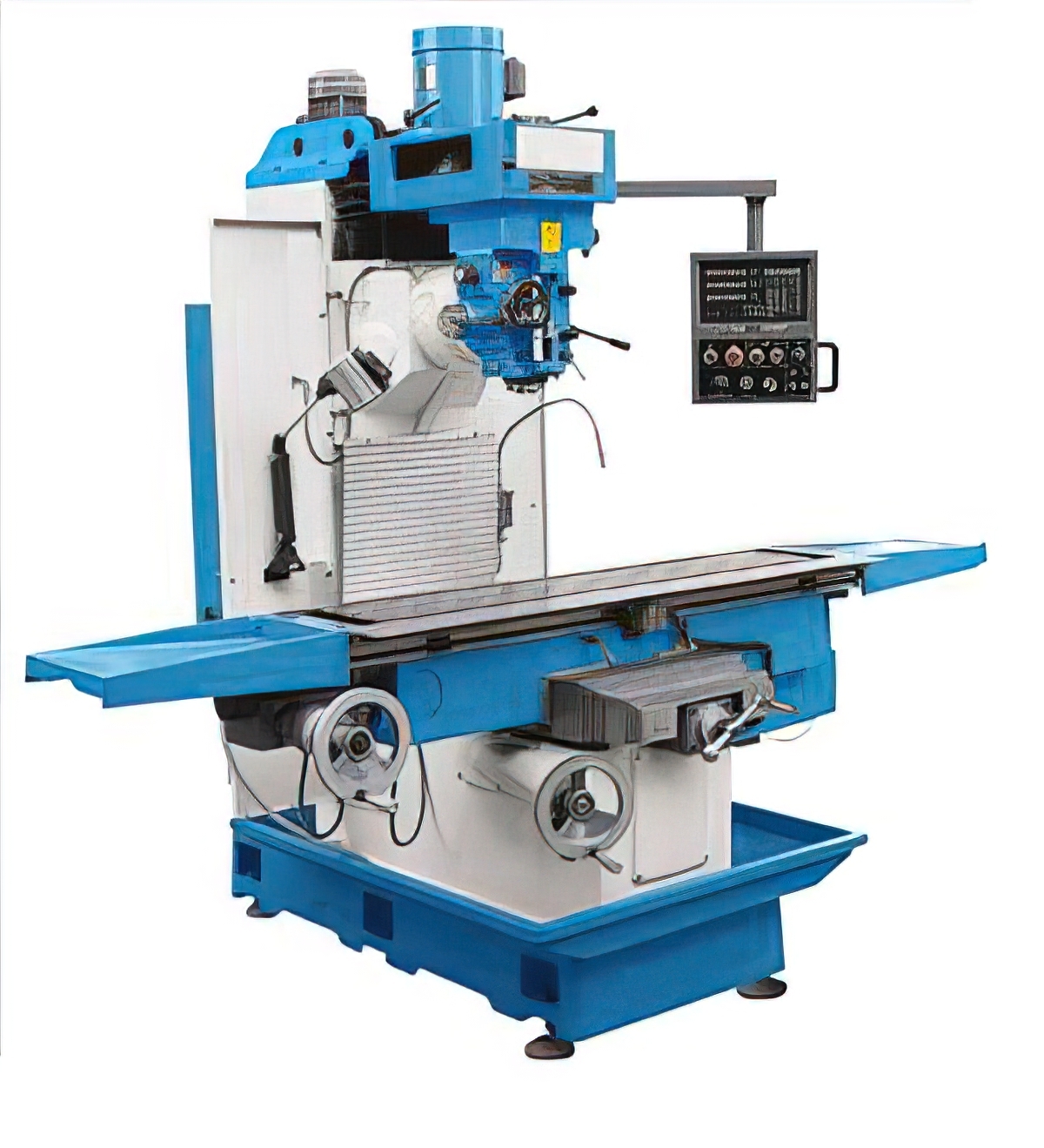

Model No.

M713

    Item No.

　Specifications

　Table size

1525 x 320 mm

　Table travel (X,Y)

1050 x 470 mm

　Vertical travel of headstock

500 mm

　T-slot (Number x Width - Distance)

3 x 14 - 80 mm

　X axis feed speed

20-1200 mm/min. (Variable)

　Y axis feed speed

Manual

　Spindle taper

ISO40

　Sindle stroke

127 mm

　Spindle speed steps

10

　Spindle speed range

70 ~ 3620 rpm

　Automatic spindle feed speed

0.1 / 0.15 / 0.3 mm/rev

　Distance from spindle nose to table

75 ~ 595 mm

　Distance from spindle axis to vertical guideway

450 mm

　Spindle motor

3.75 kw

　Overall dimension

2565 x 1920 x 2290 mm

　Net weight

2520 kg
